Engine Timing Tools – BMW | Rover
SKU: 3577Availability: This product is currently out of stock.
$209.00
3577 – Timing Tool Kit – for BMW, Land Rover
Out of stock
Description
This set of tools enables the correct timing to be maintained when servicing the BMW M47 and M57 2.0L 16v engines.
-BMW applications: 1 Series (2004 – 2007), 3 Series (1998 – 2013), 5 Series (1998 – 2010), 6 Series (2007 – 2011), 7 Series (1998 – 2008), X3 (2003 – 2010), X5 (2003 – 2007) and X6 (2008 – 2010).
-Land Rover applications: Freelander (2000 – 2006) and Range Rover (2002 – 2006).
-MG applications: ZT and ZT-T (2001 – 2005); Rover applications: 75 (1999 – 2005).
-Upgrade component for M57 and M47S available separately – please see Laser Part No. 5166 (equivalent to OEM 11 5 180 and 11 6 080).
-Made in Sheffield.
Applications
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| BMW | 1 Series | 118d, 120d | (E81/82/87/88) | 2004 – 2007 |
2,0 20 4D 1 20 4D 4 * 2,5 25 6D 1 25 6D 2 * 3,0 30 6D 1 30 6D 2 30 6D 3 * 30 6D 4 * 30 6D 5 * |
| 3 Series | 318d, 318td, 320d, 320td, 330d | (E46) | 1998 – 2007 | ||
| 3 Series | 318d, 320d, 325d, 330d, 335d | (E90/91/92/93) | 2005 – 2013 | ||
| 5 Series | 520d, 525d, 530d | (E39) | 1998 – 2003 | ||
| 5 Series | 520d, 525d/Xd/xDrive, 530d, 535d | (E60/61) | 2003 – 2010 | ||
| 6 Series | 635d | (E63/64) | 2007 – 2011 | ||
| 7 Series | 730d | (E38) | 1998 – 2002 | ||
| 7 Series | 730d | (E65/66) | 2002 – 2008 | ||
| X3 | 2.0d, 3.0d/sd, xDrive 30d, xDrive 35d | (E83) | 2003 – 2010 | ||
| X5 | 3.0 D Turbo | (E53) | 2003 – 2007 | ||
| X5 | 3.0 sd, xDrive 30d, xDrive 35d | (E70) | 2006 – 2010 | ||
| X6 | xDrive 30d, xDrive 35d | (E71) | 2008 – 2010 | ||
* require additional pins Laser 5166
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| MG | ZT/ZT-T | 2001 – 2005 |
2,0 CDTi M47R |
||
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| Rover | 75 | 1999 – 2005 |
2,0 CDTi M47R |
||
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| Land Rover | Freelander | (L314) | 2000 – 2006 |
2,0 Td4 204D3/TD4 3,0 TD6 306D1/TD6 |
|
| Range Rover | (L322) | 2002 – 2006 | |||
Useful Downloads

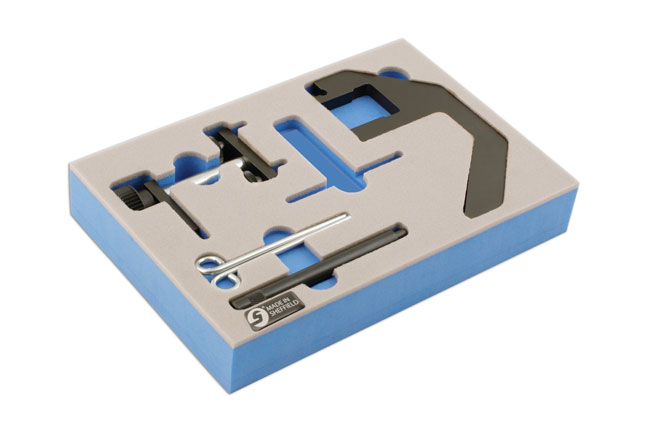

Set Contents
| Component | Description | OEM Toolcodes |
|---|---|---|
| C020 | Crankshaft Alignment Pin |
11 2 300
11 5 120
12 108
12 171
KM 813
LRT 12 108
LRT 12 171 |
| C028 | Camshaft Alignment Tool |
11 6 322
12 173
LRT 12 173 |
| C029 | Clamp assy for Camshaft Alignment Tool |
11 6 320
11 6 321
12 174
LRT 12 174 |
| C030 | Tensioner Locking Pins (2) |
11 3 340
12 172
LRT 12 172 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 25 × 10 cm |
