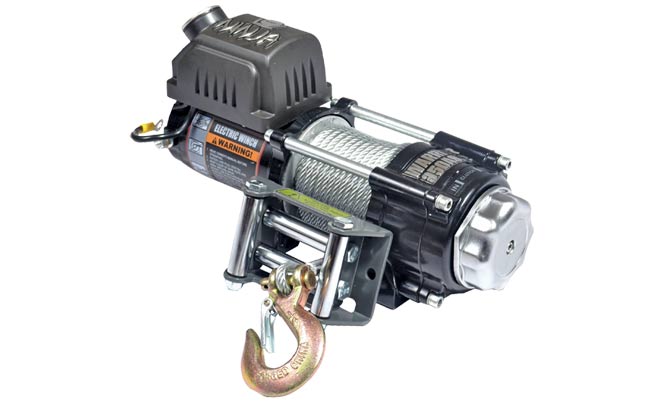

Ninja 3500 Electric Winch with Steel cable
SKU: 35SPS12Available
$310.20
3500 Electric Winch with Steel cable.
PDF – Warrior Ninja 3500 Winch Parts list
PDF – Warrior Ninja 3500 Installation Plate Dimensions
PDF Warrior Ninja 3500 Technical Diagram
PDF – Warrior Ninja 3500 Winch User Manual
PDF – Warrior Ninja Series Brochure
2 in stock
Description
DESCRIPTION
Ideal for large ATV’s and small trailers. A huge high power motor, heavy duty clutch, heavy duty steel gearing and heavy duty waterproof contactors ensure the ultimate in performance and reliability. Strengthened Steel drum makes it ideal to use with Synthetic Rope. Watertight 4 Pin connection allows the use of ‘Plug and Play’ Wireless.
Outstanding Features
Sealed High Power Motor
Heavy Duty Watertight Contactors
Full Steel Planetary Gearing
Strengthened Steel Drum
(suitable for Synthetic rope)
Watertight Controller Socket
Gloss Chip Resistant Paint
Specifications
| Rated Line Pull | 3500 lbs (1588 kg) |
|---|---|
| Motor | 12v: 2.4kw/3.2hp 24v: 2.9kw/3.9hp |
| Gearing | 170:1 |
| Braking Action | Dynamic |
| Drum Size – Dia x L | 37 x 80mm (1.46 x 3.15 in) |
| Cable – Dia x L | 5.4mm x 12.8m (0.21 in x 42 ft) |
| Dimensions | 346 x 113 x 118mm (13.62 x 4.4 x 4.6 in) |
| Mounting Pattern | 124 x 76 mm (4.88 x 3 in) |
| Weight kg | 11 kg (24.2 lbs) |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 3500 (1588) |
| 2 | 2789 (1265) |
| 3 | 2319 (1052) |
| 4 | 1984 (900) |
| 5 | 1733 (786) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|
| 0 | 10.5 (3.2) | 45 | 25 |
| 1000 (454) | 8.9 (2.7) | 75 | 40 |
| 2000 (907) | 7.5 (2.3) | 130 | 75 |
| 3500 (1588) | 4.6 (1.4) | 200 | 120 |
Additional information
| Weight | 12 kg |
|---|
